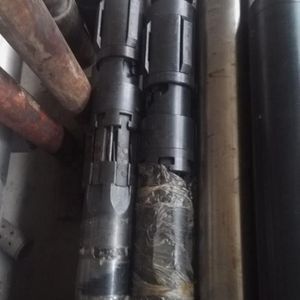

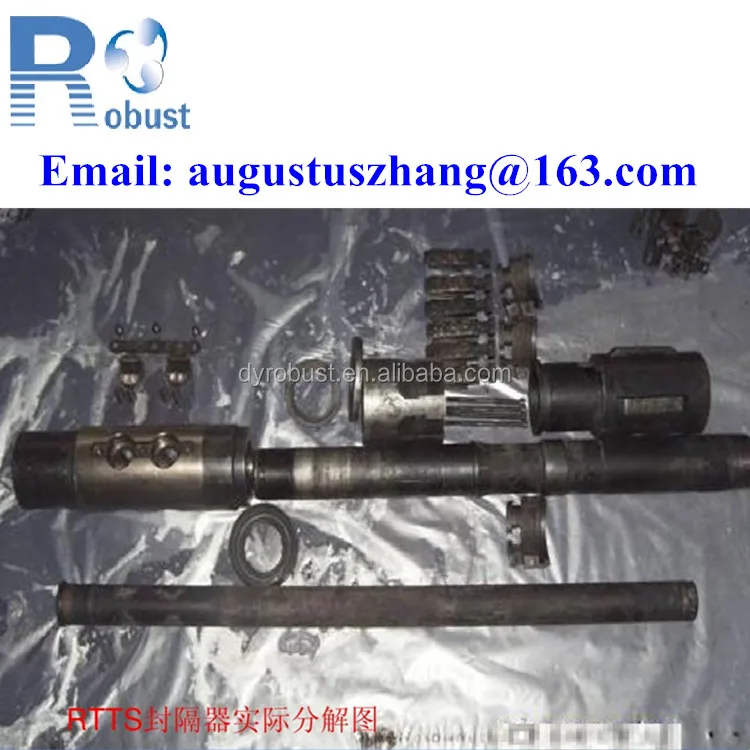

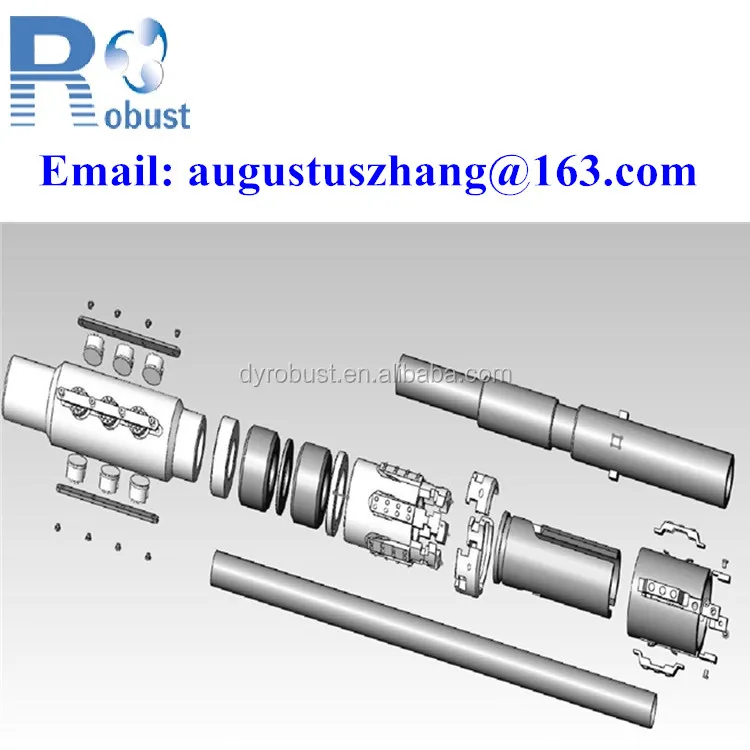

China API Mechanical RTTS Packer for oil field

Application:

For zonal swabbing, oil recovery, water control, fracturing, acidizing and sand control.

Technical requirement:

If the underground condition permits, lower part of the packer should be connected with 3-4 oil tubing for tail pipe, and when lowering to the well the thread should be tightened.

Setting:

After lowering to the design depth, lift the packer up for 1-1.5m, rotate the tubing string for 4-8 circles (depending upon the well depth), then suppress the rubber barrel to enlarge its radical size so as to seal the annulus space between the tubing and casing and complete the setting.

Specifications:

Total length: 1280mm

Maximum external diameter: 114.3mm

Minimum diameter: 55mm

Setting load: 100-150KN

Operating pressure: 75Mpa

Applicable sleeve: 5 1/2”

Operating temperature: 150°C

Thread size: 2 7/8”UPTBG

Packaging and shipping detail

1.The spare parts in iron box
2.The big part will naked packing in the container

3.According the order.

Provide considerate services to minimize clients' worries:

(1) Assist clients to prepare for the first construction scheme;

(2) Install and debug the equipment;

(3) Train the first-line operators on site

(4) Examine the equipment regularly;

(5) Take initiative to eliminate the troubles rapidly at site;

(6) Distribute the guarantee fittings door-to-door

(7) Provide perfect service;

(8) Provide technical exchanging;

(9) Provide maintenance for big items.
