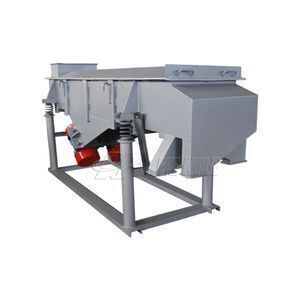

Powder Coating Used Linear Vibrating Screen Sieving Machine

Supplier: The Nile Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Lily Li
Price: $5800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Amplitude(mm):	4-10;	Voltage:	380V;
Machinery Test Report:	Provided;	After-sales Service Provided:	Online support,Video technical support;
Place of Origin:	Henan China;	Condition:	New;
Product name:	SZF Linear Vibrating Screen;	Core Components:	MOTOR;
Application:	ORE;	Factory visit:	Welcome;
Dimension(LWH):	2200*6000mm;	Certification:	ISO CE;
Local Service Location:	kenya;	Package Preview:	;
Supply Ability:	500.0 Set/Sets per Month;	Marketing Type:	New Product 2020;
Layer:	1-6;	Showroom Location:	kenya;
Packaging Detail:	large parts by standard export container, small parts by wooden box;	Warranty of core components:	1 YEAR;
Brand Name:	The Nile CO.,LTD;	Type:	LINEAR;
Video outgoing-inspection:	Provided;	Port:	Qingdao Port;
Applicable Industries:	Manufacturing Plant,Energy & Mining;	Input size(mm):	0.074-15;
Warranty:	1 YEAR;	Weight:	according to the model;
Inclination (°):	0-7;	colour:	Customzed;
Payment Terms:	L/C,T/T,Powder Coating Used Linear Vibrating Screen Sieving Machine;

Powder Coating Used Linear Vibrating Screen Sieving Machine

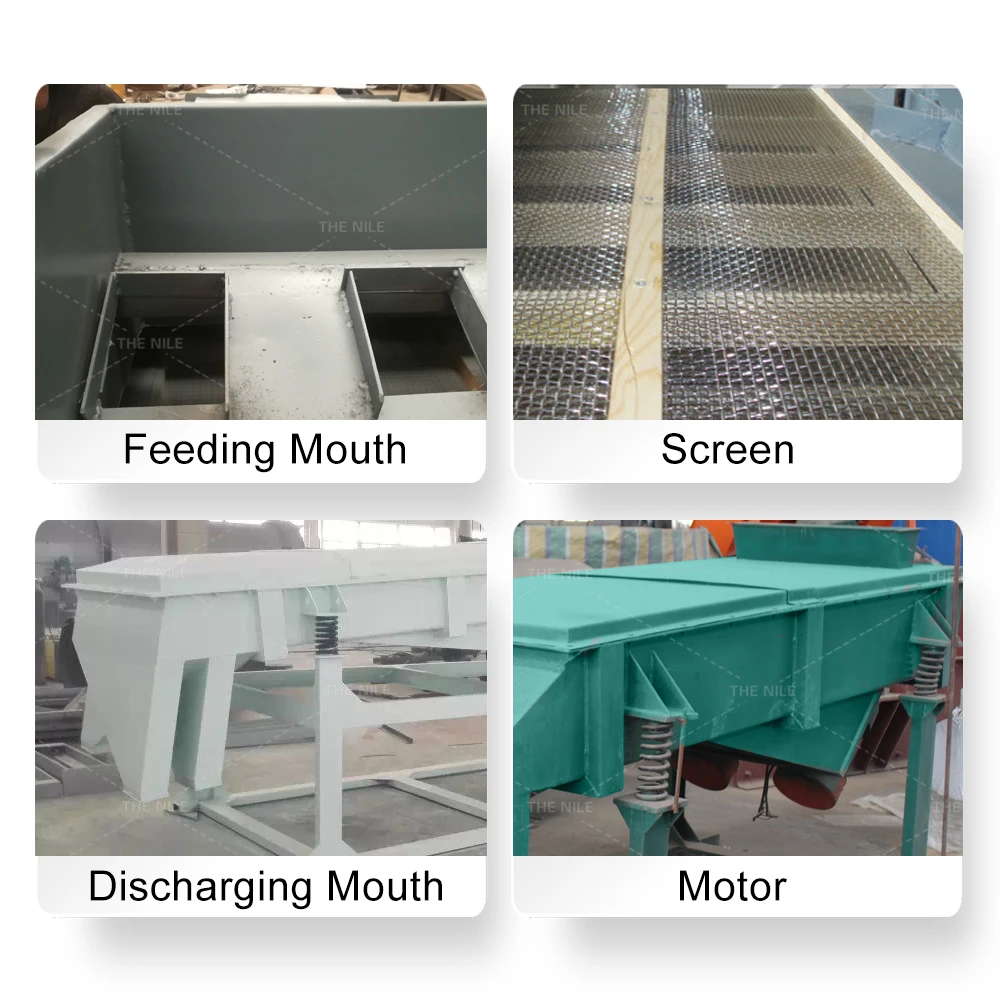

Product Description

The linear vibrating screen can equip with single-layer or multi-layer screens to achieve the target of rating,impurity,removing powder,testing,washing,dehydration, etc.

Materials are put into the inlet of the screen machine by the feeder evenly and are divided into several products,unqualified sieve materials,qualified sieve materials through the multi-layer screen and all of them discharge from their own outlet.It can be used in the automatic work of the assembly line.

Application

It is suitable for any dry material screening from 0.74mm-5mm,the largest particle size is 10mm.It is widely used in chemical,food,plastics,pharmaceuticals,metallurgy,glass,building materials,food,fertilizers,abrasives,ceramics,and other industries.

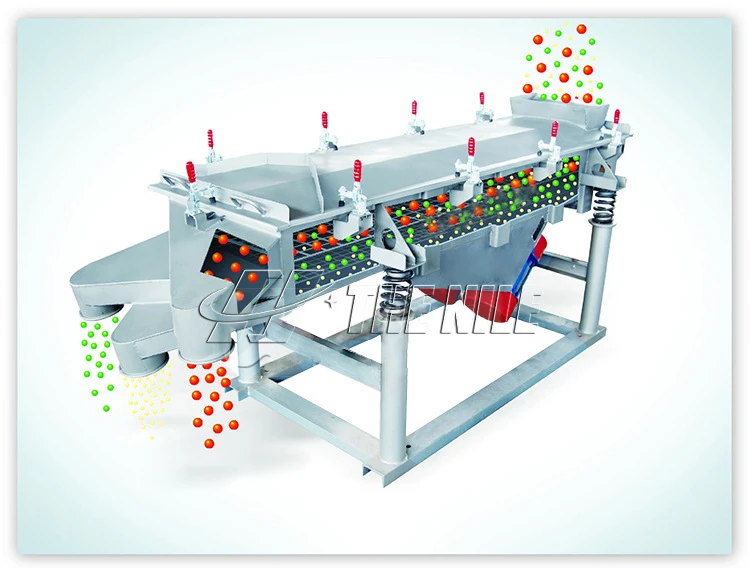

How does the linear vibrating screen work

The motor through a vee belt makes the eccentric of the activator start high-speed rotation.The operation of the eccentric block generates a lot of centrifugal force, stimulate the screen forming a certain amplitude circle movement. Materials on the tilted screen surface do continuous throwing movement after receiving the impulse given by the sieving box. During the process of collision of materials and sifter, the grain which is less than the screen hole will be chosen so as to realize the grading.

Features

1.Rapid to replace the mesh,rapid tension;

2.High efficiency,low noise;

3.The way that materials are on the screen surface is long,high screen fineness,large handling capacity;

4.Screen and classify materials,at the same time,transport materials in a long distance;

5.According to the particle size,probability through the sieve,productivity,we can change the screen spacing and dip angle;

6.We can design different sizes and structures according to the production site.

Technical Parameters

Model	Dimension (mm)	Input Size (mm)	Inclination (°)	Amplitude (mm)	Layer	Power(kw)
SZF520	500×2000	0.074~10	0°~7°	4~8	1~5	2×(0.4-0.75)
SZF525	500×2500					2×(0.4~0.75)
SZF1020	1000×2000					2×(0.75~1.5)
SZF1025	1000×2500					2×(1.1~1.5)
SZF1030	1000×3000					2×(1.5~1.8)
SZF1040	1000×4000					2×(1.5~2.2)
SZF1235	1200×3500					2×(1.1-2)
SZF1250	1200*5000					2×(1.8~3)
SZF1535	1500×3500					2×(2.2~3)
SZF1548	1500×4800					2×(2.2~4)

Packaging & Shipping

A standard package in wooden boxes or containers.

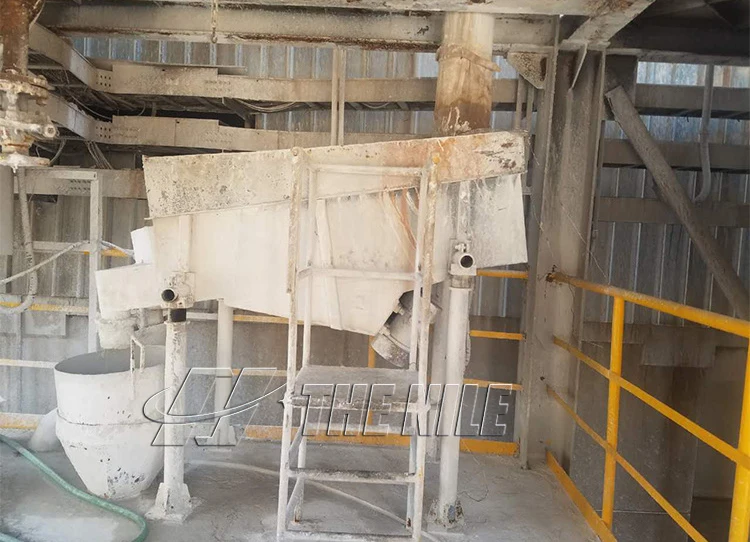

Successful Case

Company Information

The Nile Co.,Ltd.is committed to designing,producing grinding mills,crushers,conveyors,feeding machines,drying and calcinating as well as beneficiation equipment,fine sand recycling equipment etc,which are widely applied in electricity,metallurgy,mine and quarry, wharf,granary,chemical industry.Our products have been spread all over China,and also exported to European,American,Asian,African countries and enjoyed great popularity among our customers.

Our company owns an experienced and skilled sales and service team which compose a perfect service network.We will send the professional engineers to the installation sites and provide guidance for the installation,commissioning and initial run as well as planning administration of the equipments after purchase.

Our Services

We can not only provide good quality sand making machine, but also provide the best service for our clients. The series of professional technology services will make you have an excellent product experience.

Pre-sale services:

(1) The advice of model choice.
(2) Design and manufacture machines according to customer's special requirements
(3) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program

After-sale services :

(1) Arrange technicians to go to the site to guide installation
(2) If your machine is out of warranty period, you can go to the Nile's overseas office to buy spare parts.
(4) complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.

FAQ

Q1: Are you factory or trade company?
A1: We are factory.

Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.

Q3: How will you help the customer to install the equipment?
A3: Our senior engineer will guide the installation and commissioning as well as the initial production at

Q4: How about the wear parts supply?
A4: We offer wear parts to our customer with our most favorable price. If there are problems youcould not handle, we will send our technicians to your place and you are therefore, responsible for all thecost involved.

Q5: What about the payment method?

A5:T/T, L/C Paypal is available

Q6: What about after-sale service?
A6:12 months warranty for all kinds of products.
