Industrial quartz limestone kaolin calcium carbonate grinding roller mill machine price fine powder YGM grinder production line

Product details
Certification:ISO9001:2008, CE ,CQC;Package Preview:;
Core Components:Bearing;Roller Size:270 x 140 mm;
Motor Type:AC Motor;Applicable Industries:Energy & Mining;
Place of Origin:Henan China;Company:Baichy Machinery;
Output Size:0.613-0.033 mm;Warranty of core components:1 Year;
Dimension(L*W*H):5300 x 4100 x 5200;Brand Name:BAICHY;
Supply Ability:100 Set/Sets per Month;Marketing Type:Hot Product 2019;
Spare parts supplying:Paid;Type:Raymond Mill;
Test&Installation:Under Technical Guide;Port:Qingdao, Tianjin, Shanghai;
Inner Diameter Height and Length:830 x 150 mm;Packaging Detail:Standard containers, wooden boxes, etc;
After-sales Service Provided:Engineers available to service machinery overseas,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;Video outgoing-inspection:Provided;
Application:Stone Powder Grinding;Condition:New;
Showroom Location:Pakistan,South Korea,Bangladesh,Kazakhstan,Kyrgyzstan,Uzbekistan,Tajikistan;Capacity(t/h):1.2-3.5 t/h;
Machinery Test Report:Provided;Local Service Location:None;
Product name:mill machine price fine powder YGM grinder production line;Warranty:1 Year;
Payment Terms:L/C,Western Union,T/T,MoneyGram;Max Feed Size:20 mm;

Industrial quartz limestone kaolin calcium carbonate grinding roller mill machine price fine powder YGM grinder production line

Machine component:mainframe, separator, blower, finished powder cyclone collector, bag filter and connecting pipes, etc.Processed Materials: Limestone, calcite, barite, dolomite, potassium feldspar, marble,talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, iron ore, quartz, active carbon, coal, ect.

[ Capacity ]: 0.5–60 t/h

[ Applicable Material ]:

Raymond mill, also known as raymond grinding mill, raymond roller mill and raymond grinder, is suitable for grinding non-flammable and non-explosive materials.The finished powder size can be adjusted between 30 and 425 mesh(0.613mm-0.044mm).
Raymond mill is suitable for process in various non-flammable mineral which is below seven Mos hardness, moisture below 6%, such as limestone, calcite carbonate,dolomite, barite, talc, gypsum, diabase, quartz, bentonite, bauxite, iron ore, etc.

Working principle

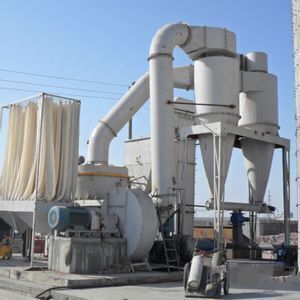

1. The whole structure of Raymond Mill machine is mainly including the host, analysis machine, plumbing fixtures and the blower, according to user needs, it can be equipped with crusher, elevator, electromagnetic vibrating feeder, electric control cabinet etc.

2. After materials crushed to the desired particle size, enter into the storage hopper by the elevator, and then through vibrating feeder enter into grinding chamber of Raymond mill uniform continuously.

3. Due to the centrifugal force when rotating, the rollers swings outward, pressed on the grinding ring, shovel blade scoop up materials, then sent them between grinding roller and grinding ring, due to the grinding roller roller rolling to achieve crushing purpose.

4. After grinding material, the powder along with the circulating air which made by blower, is brought into the analysis machine for sorting, coarse material will regrind. Qualified powder along with the air enters into finished product cyclone powder collector, then discharge powder tube, that is finished product.

5. In the grinding chamber of Raymond mill, because there are certain moisture in the grinded material, when grinding, it will generate heat, moisture evaporates, and the pipe interface of the whole is not tight, the outside air is drawn into making the circulation pressure increased to ensure that the mill wok under negative pressure. The increased air flow enter into the dust through the duct, at last enter into the atmosphere after purification.

Model Roller Roll Dia. (mm) Roll Ring Size (mm) Max. Input Size (mm) Output Size (mm) Capacity T/Shaft Power (Kw) Dimension
3R 1510 3 150*100 570*100 15 0.125-0.044 0.8-10 7.5 3200*1200*3800
2115 3 210*150 630*150 15 0.125-0.044 1-12 15 3500*3300*4500
2615 3 260*150 780*150 20 0.125-0.044 1.5-20 18.5 4650*3600*5100
2715 3 270*150 830*150 20 0.125-0.044 2-28 22 4700*3600*5100
3015 3 300*150 875*150 25 0.125-0.044 2-35 30 5300*4100*5200
4R 3016 4 300*160 890*160 25 0.125-0.044 3-36 30 5400*4100*5200
3216 4 320*160 970*160 25 0.125*0.044 4-45 37 7100*5900*7900
3220 4 320*200 970*200 25 0.125-0.044 4-55 45 9900*5800*1058
5R 4119 5 410*190 1270*190 30 0.613-0.044 8-60 75 9200*7250*9700
Eccentric shaft adopt 40Cr steel precise forged, Advanced Movable jaw plate assemble made from high quality casting parts, Tooth-shape plate, deep V-chamber, high manganese steel material ZGMn13-4 make crusher more reliable, Precise casting heavy fly wheel,Jaw crusher frame adopt thick Q235B heavy steel plate welding process.Machine blasting, anti-rust painting, surface painting at least three times paintings.
Baichy headquarters is located in the industrial park in Jiaozuo City. It covers a total area of 200,000 square meters, including 150,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 500 workers, including more than 20 middle and senior technicians. Baichy is mainly focus on 4 series products: stone crusher machines, sand making equipment, powder grinding mills, mineral processing equipment and their spare parts. Every year, Baichy can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.

1. Are you manufacture or trading company?

We are factory, established in 2003.

2. How long is your delivery time?

7-10 days for the stock, 15-30 days for the mass production.

3. What is your payment method?

30% deposit in T/T advance, 70% balance before shipment.

4. How long is the warranty? Does your company supply the spare parts?

One year. Spare parts for you at lowest cost.

5. If I need the complete crushing plant can you help us to build it?

Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
