Factory Supplier! Milk Homogenizer Machine Price

I.Product Description:

Working principle:

1. The homogenizer is a kind of ultra-fine comminution, emulsifying homogenate equipment.

2. It's USES high pressure conditions suspension liquid, through an adjustable homogeneous valve aperture

voltage-absent, expansion, explosion, shear and collision, comprehensive effect material to superfine crushing,

particle size can reach 0.01 ~ 2 u m, average 1 muon m, and formed a good emulsion or dispersed.

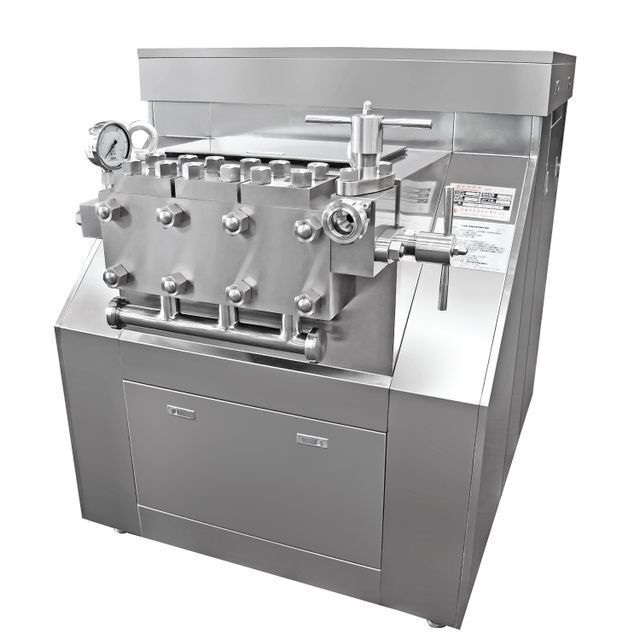

Description of Construction:

1) Actuation: Two-step of speed changes; first step is belt pulley; the second step with crank gears get transmission

oppositely; the slide can be disassembled simply, spindle and tile are made of special alloys, the rolled axletree

setted on two sides make the machine steadily and low noise.

2)lubrication: Splashed free lubrication.

3)Main pump: Three channels,the pressing cover takes radial direction sealing itself.

4)3Pistons: Quadrate sealing component, code:X4310

5)One-way valve:There are 3 in and out of tapered valve, total 6.

6)Homogenizing valve:The one step ,high pressure component consist of high pressure valve core,

high pressure valve seat and impact ring.The two step,low pressure component consist of two plane valve.

7)Control of pressure:One diaphragmatic pressure gauge imported and assembled from Germany.It control high

 pressure and low pressure.

8)Adjustment of pressure: Stepless manual Adjustment for the pressure gauge,two step.

II.Related Items:

1.Packing: By standard export plywood case(no vermin, germs)

2.Payment: TT/LC/Western Union etc. Is acceptable

3.Warranty: 1 year (For non-human damage factor)

4.Port of loading: Shanghai, China (or named by clients)

III.Hearty service:

1. Before sending the machine, we will test and adjust, so you can use directly when you get it.

2. Operating video & instruction will be sent to clients, to help them better use the machines.

3. Any problems occur while using, professional advice will be given by us.
