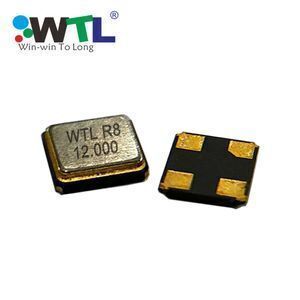

Cost Down! WTL SMD Crystal 3225 Xtal 26MHz Crystal Quartz Resonator

Product details
Selling Units:Single item;Delivery Detail:0 days after payment;
OEM:Welcome;Packing:3.2*2.5mm;
Warranty:180 Days;Frequency:26.000MHz;
Certificate:ISO9001, ISO14001, SGS, RoHS;Load Capacitance:9pF;
Frequency Tolerance:+/-10ppm;Operating Temperature Range:-20+70'C;
Model Number:WTL2.00298ZX;Single gross weight:0.001 KG;
Brand Name:WTL;Frequency Stability:+/-10ppm;
Single package size:1X1X1 cm;About Us:19 Years Experience;
Place of Origin:Guangdong China (Mainland);

Cost Down! WTL SMD Crystal 3225 Xtal 26MHz Crystal Quartz Resonator

WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com



ELECTRICAL SPECIFICATIONS

Product Attributes

P/N

WTL2.00298ZX

SeriesTX3
Size / Dimension3.2x2.5 mm

Frequency

26.000MHz

Load Capacitance(CL)

9pF

Frequency Tolerance (at 25°C)

± 10ppm

Frequency Stability Over Operating
Temperature Characteristics

± 10ppm

Operating Temperature Range

-20°C--+70°C

Operating Mode

Fundamental / AT

Package / Case

4-SMD, No Lead

Packaging

Tape & Reel (TR)

Storage Temperature Range

-55 °C to + 125 °C

Shunt Capacitance (C0)

5.0 pF Max

Driver Level

10µW~100µW

Equivalent Series Resistance ESR

60Ω Max

Aging @25°C 1st year (Max)

± 3ppm/year

Shock Resistance

Drop test of 3 times on 2mm stainless plate from 75cm height

1.19 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Over 72 Countries and Regions, 27 Distributors

9.Custom-made Frequencies Due to we have our own Wafer Production Line

Our factory has a history of 19 years and it is located on Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!

FAQ

1.What is the general lead-time of the products?

ProductLead Time
HC49 Series1-2 weeks
SMD Crystal1-4 weeks
DIP Oscillator1-2 weeks
SMD Oscillator1-3 weeks
TCXO2-8 weeks
Watch Crystal1-2 weeks

2.Since the lead-time is set, what about samples?

Usually the samples are needed the same lead time. By the way, we can offer each customer 10-20PCS samples free of charge.



3.What basic information to provide when ordering a crystal?

Generally we request the customer to provide the center frequency, type of cutting angle(AT/BT), holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc, Customer can also specify other specific spec or requirement, if any, when placing orders.



4.What is the WTL main material?

TypeVendor
Crystal Bar

South Urals,Russia- Crystal Factory, TF

Base

SMI/NTK/KYOCERA(JP)

IC

NPC- Japan

Top Cover

Hua Nu Dike/Yoshikawa Corporation (JP)

Conductive Glue

Three Bond – (JP)



5. We need the part urgently, can you deliver it within 1 week? 3 weeks is too long for us.

As you know, according to normal process for this part, it really need such time for production, we have to make sure every part is strictly controlled under the requirements, if we push the workers to make it in a hurry, I cannot promise you the products quality. We have arrange best delivery time for you, pls be patient with the process.
