material: | carbon steel; | Packaging Detail: | Export standard packaged; |
name: | casing slip; | Payment Terms: | L/C,T/T; |
Delivery Detail: | According to the Qty.; | certificate: | API; |
Place of Origin: | Shandong China; | Port: | Shanghai; |
Type: | Safety Slip; | Supply Ability: | 2000 Piece/Pieces per Month; |

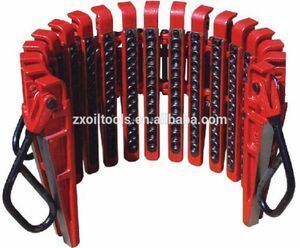

CMS-XL Casing Slips
Casing slips can accommodate casing from 4-1/2 to 30inch OD.
Casing OD | In | 4 1/2 | 5 | 5 1/2 | 6 5/8 | 7 | 7 5/8 | 8 5/8 | 9 5/8 | 10 3/4 |
mm | 114.3 | 127 | 139.7 | 168.275 | 177.8 | 193.675 | 219.075 | 244.475 | 273.05 | |
Circular Buttons P/N | 2628-108 | 2619-108 | 2630-108 | 2628-144 | 2619-144 | 2630-144 | 2630-156 | 2630-168 | 2630-180 | |
Total number of segments | 9 | 9 | 9 | 12 | 12 | 12 | 13 | 14 | 15 | |
Weight | Kg | 81 | 81 | 80 | 89 | 84 | 75 | 82 | 87 | 95 |
Ib | 176 | 176 | 174 | 196 | 184 | 166 | 181 | 192 | 209 | |
Use in insert Bowl number | API or No.3 | No.2 |
