Automatic Nickel Strip Tape Cutting Machine for Tube /Cable/film or Foil Cutting

Supplier: Xiamen Tmax Battery Equipments Limited
Region: Fujian, China
Contact: Mr Aaron Huang
Price: $700.00 /set
Min. Order: 1 set

Click here to contact

Product details

Cutting speed:	0-130times/min;	Packaging Detail:	1 Standard exported package: Internal anticollision protection, external export wooden box packaging. 2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way. 3 Responsible for the damage during the shipping process, will change the damage part for you for free.;
Cutting material:	Metal;	Cutting length:	0.1mm-10m;
Supply Ability:	10000 Set/Sets per Month;	Port:	Xiamen Port;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Source voltage:	AC110V/220V;
Cutting width:	can be customized;	Suitable for:	Nickel strip and PVC;
Rated Power:	200W;	Type:	Pipe Cutting Machine;
Key Selling Points:	Automatic;	Warranty:	1 Years;
Condition:	New;	Weight (KG):	30;
Applicable Industries:	Nickel Strip Cutting Machine;	After-sales Service Provided:	Online support,Video technical support;
Brand Name:	TMAX;	Dimension(LWH):	360300350mm, 360300350;
.Cutting type:	For cold cut and optional hot cut;

Product Description

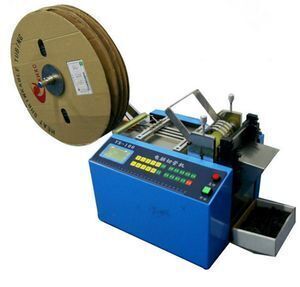

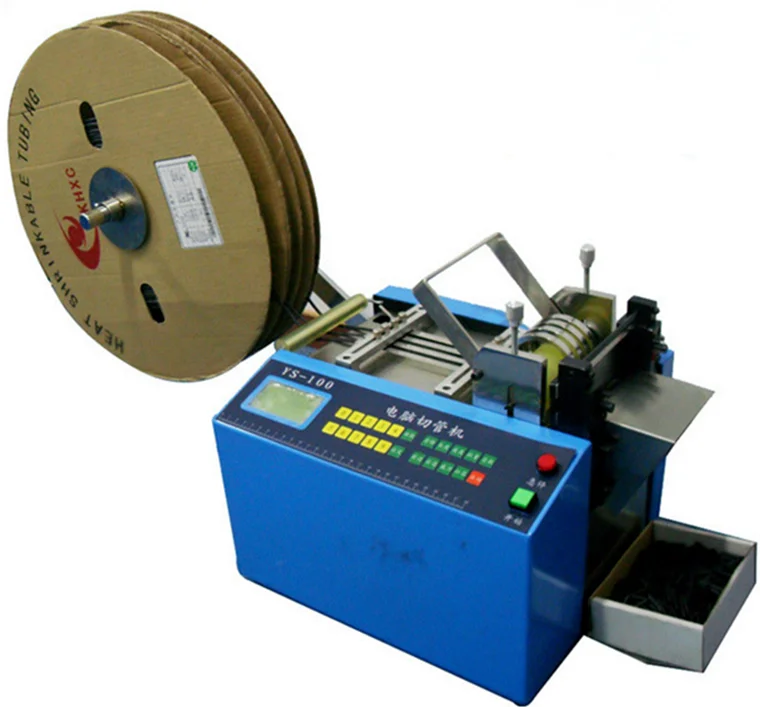

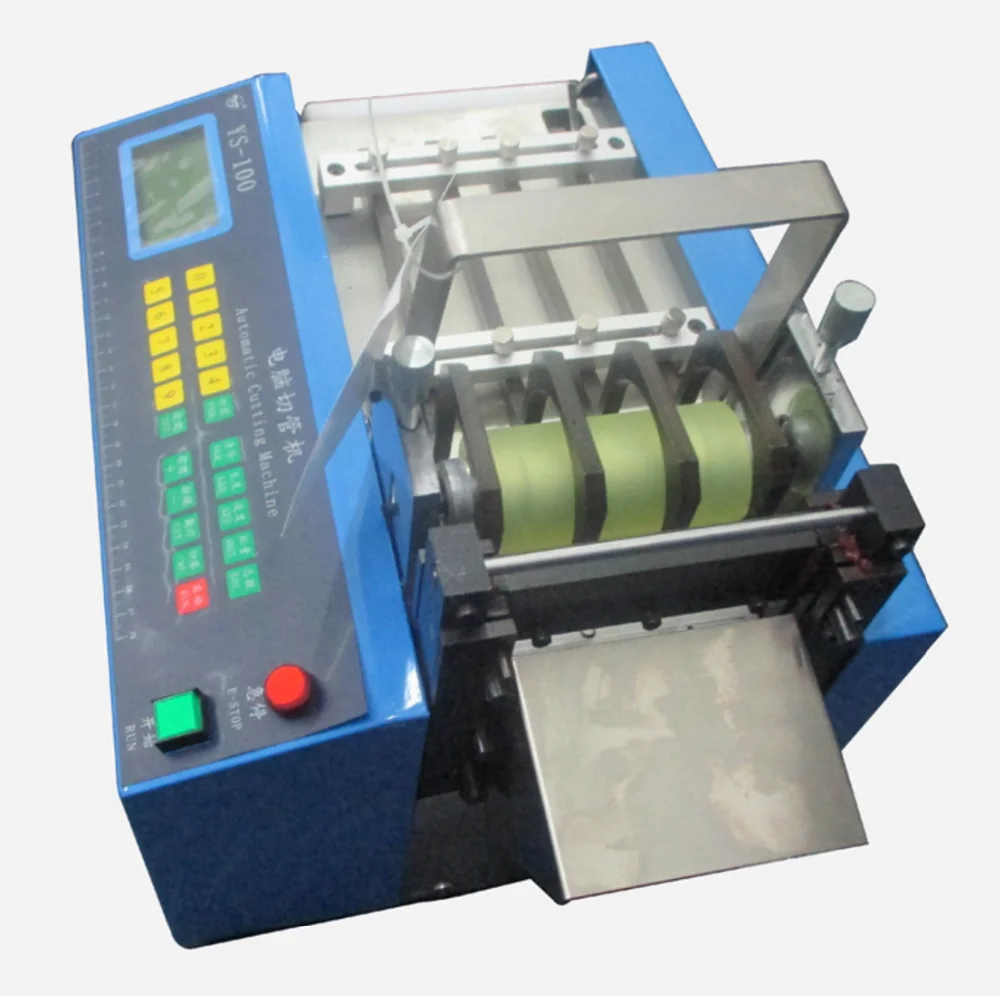

Automatic Nickel Strip Tape Cutting Machine for Tube /Cable/film or Foil Cutting

Features

Model: YS-100

1.High speed: It can cut 100~120 cut per minute. (50mm long)

2.High accuracy: Cut-length is accurate, cut length can be set between 0.1-9999.9mm.

3.Cutting type: For cold cut and Optional hot cut. Hot cut suitable for materials that needs hot sealing, such as Nylon webbing, polyester webbing, etc.

4.Automatic operation: It works automatically only by setting length and quantity. Save labor, high efficiency.

5.Automatic stopper: It stops automatically if materials run out during operation

6.Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on

7.Application:The cutting machine is suitable for cutting tubes, cable, webbing/ribbon/belt, small wire, sheet and film, etc.

8.High speed, high accuracy, designed for cutting non-adhesive materials.

YS-100: Cut tubes with diameter less than 13mm

Application

The cutting machine is suitable for cutting tube, ribbon/webbing/belt, cable/wire, sheet, film etc.

Tube: PVC tube, heat shrink tube, PVC heat shrinking tube, fiberglass tube, Teflon tube, corrugated tube, etc.

Cable: Flat cable, copper wire, etc

Tape: nickel strap, hook and loop, cotton tape, elastic band, plastic tape, zipper, conductive tape,foam, etc

Sheet: battory separator, Nickel sheet, diffusersheet, plastic/rubber sheet, pvc sheet,etc

Film: plastic film, reflecting film, double-sided tape, Malar film, insulation paper, PE, Copper/Aluminum foil, release paper,etc

Specifications

Model	Nickel Cutting Machine YS-100
Source voltage	AC 220V/110V, 50/60HZ, Customized
Power	200W
Warranty	One year limited warranty with lifetime support
Advantages	1 In automatic stop without materials, unattended 2 With a knife or blade adjustment conveniently 3 Automatic grouping and total cumulative count 4 Suitable for all kinds of metal and no-metal strip materials, such as copper foil, aluminum foil, copper foil tape, batteries nickel belt and so on
Cutting speed	0-130times/min
Cutting length	0.1mm-10m
Cutting width	0.1-100mm, according to model we choose
*Dimension(LWH)*	360300350mm
Weight	About 30kg
