WTL Crystal Oscillator 25.4*25.4 OCXO 10MHz

Product details
Cetificate:ISO9001, ISO14001, SGS, RoHS;About Us:19 Years Experience;
Packaging Detail:40 pcs/Box, 5 boxes/Carton, 200 pcs/Carton(WTL Crystal Oscillator 25.4*25.4 OCXO 10MHz);Dimensions:25.4*25.4*12.7mm;
Place of Origin:Guangdong China;OEM:Welcome;
Item:OCXO;Payment:T/T, Western Union, PayPal,Credit Card;
Brand:WTL;Package:DIP;
Supply Voltage:5V;Nominal Frequency:10.000MHz;
Package Type:Throught Hole;Model Number:WTL2.01360ZX;
Shipment:DHL, UPS, Fedex, EMS,China Post;Brand Name:WTL;
Factory:Yes;Load Capacitance:15pF;
Port:Shenzhen;Warranty:Global 180 Days Return;
Package Type:DIP;Supply Ability:100000 Piece/Pieces per Month OCXO;
Frequency Tolerance:+/-3ppb;Payment Terms:L/C,T/T,Western Union,Paypal;
Feature:SC Cut Crystal;Frequency Range:5.000MHz-100.000MHz;
Operating Temperature:-30+70'C;

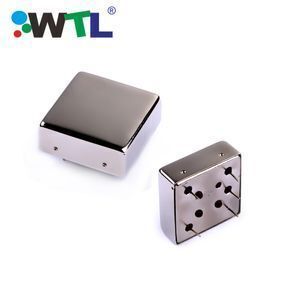

WTL Crystal Oscillator 25.4*25.4 OCXO 10MHz

WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com



FEATURE

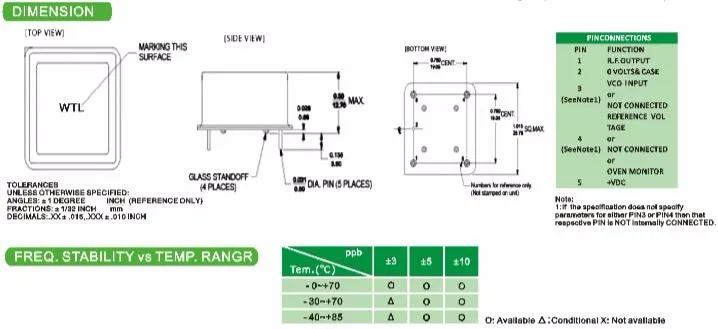

1. Dimension 25.8*25.8*12.7mm typical

2. SC Cut Crystal

3. Application:SDH/SONET, Telecommunication base station,Test and measurement equipment,Synthesizer,Digital switch,Reference Timing Circuit.



ELECTRICAL SPECIFICATIONS

25.4*25.4mm Oven Controlled Crystal Oscillator(OCXO)

Item

Specifications

P/N

WTL2.01360ZX

Package

25.4*25.4mm

Frequency

10.000MHz

Waveform

Sine Wave

Supply Voltage

5V

Frequency Stability Over Operating Temperature Range

± 3ppb

Operating Temperature Range

-30°C--+70°C

Storage Temperature Range

-55 °C to + 125 °C



WTL Crystal Oscillator 25.4*25.4 OCXO 10MHz

Packaging & Shipping



Our Services



1.19 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Over 72 Countries and Regions, 27 Distributors

9.Custom-made Frequencies Due to we have our own Wafer Production Line



Our factory has a history of 19 years and it is located on Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!

FAQ



1.What is the general lead-time of the products?

ProductLead Time
HC49 Series1-2 weeks
SMD Crystal1-4 weeks
DIP Oscillator1-2 weeks
SMD Oscillator1-3 weeks
TCXO2-8 weeks
Watch Crystal1-2 weeks

2.Since the lead-time is set, what about samples?

Usually the samples are needed the same lead time. By the way, we can offer each customer 10-20PCS samples free of charge.



3.What basic information to provide when ordering a crystal?

Generally we request the customer to provide the center frequency, type of cutting angle(AT/BT), holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc, Customer can also specify other specific spec or requirement, if any, when placing orders.



4.What is the WTL main material?

+
TypeVendor
Crystal Bar

South Urals,Russia- Crystal Factory, TF

Base

SMI/NTK/KYOCERA(JP)

IC

NPC- Japan

Top Cover

Hua Nu Dike/Yoshikawa Corporation (JP)

Conductive Glue

Three Bond – (JP)
