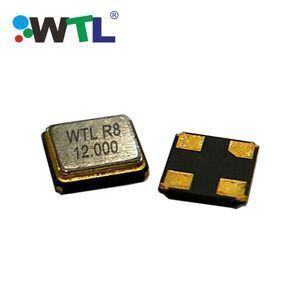

WTL 3225 SMD Crystal and Oscillator with 19 Years Experience

Supplier: WTL International Limited
Region: Guangdong, China
Price: $0.06 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Operating Temperature:	-20°C+70°C;	Frequency Stability:	±10ppm;
Nominal Frequency:	12.000MHz;	Supply Voltage:	-;
Frequency Range:	8.000MHz~48.000MHz;	Model Number:	WTL2.00520ZX;
Frequency Tolerance:	±10ppm;	Package:	Reel;
OEM:	Welcome;	Certificate:	ISO9001, ISO14001, SGS, RoHS;
Warranty:	Global 180 Days Return;	Dimensions:	3.2*2.5mm;
Supply Ability:	1000000 Piece/Pieces per Month Crystal and Oscillator;	Payment Terms:	L/C,T/T,Western Union,Paypal;
Shipment:	DHL, UPS, TNT, Fedex, EMS,China Post;	Packaging Detail:	3000pcs/Reel,10K/box(WTL 3225 SMD Crystal and Oscillator with 19 Years Experience);
Brand Name:	WTL;	Load Capacitance:	18pF;
Sample:	Accept;	Item:	Crystal and Oscillator;
Brand:	WTL;	Payment:	T/T, Western Union, PayPal,Credit Card;
Package Type:	Surface Mount;	Port:	Shenzhen;
About Us:	19 Years Experience;	Place of Origin:	Guangdong China;
Package Type:	SMD;

WTL 3225 SMD Crystal and Oscillator with 19 Years Experience

WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com

FEATURE

1. Ultra thin, thickness 0.7mm

2. Leadless type

3. High precision characteristic covering up to high frequency range

4. Designed for automatic mounting and reflow soldering

5. Emboss taping specification

6. The best choice of Bluetooth wireless communication sets.DSN,PDA and mobile phone

ELECTRICAL SPECIFICATIONS

*Quartz Crystal (Seam Sealed Ceramic 3.22.5mm SMD)**
Item	Specifications
P/N	WTL2.00520ZX
Frequency Range	12.000MHz
Load Capacitance(CL)	18pF
Frequency Tolerance (at 25°C)	± 10ppm
Frequency Stability Over Operating Temperature Characteristics	± 10ppm
Operating Temperature Range	-20°C--+70°C
Storage Temperature Range	-55 °C to + 125 °C
Shunt Capacitance (C₀)	5.0 pF Max
Driver Level	10µW~100µW
Aging @25°C 1^st year (Max)	± 3ppm/year
Shock Resistance	Drop test of 3 times on 2mm stainless plate from 75cm height

WTL 3225 SMD Crystal and Oscillator with 19 Years Experience

1.19 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Over 72 Countries and Regions, 27 Distributors

9.Custom-made Frequencies Due to we have our own Wafer Production Line

Our factory has a history of 19 years and it is located on Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!

FAQ

1.What is the general lead-time of the products?

Product	Lead Time
HC49 Series	1-2 weeks
SMD Crystal	1-4 weeks
DIP Oscillator	1-2 weeks
SMD Oscillator	1-3 weeks
TCXO	2-8 weeks
Watch Crystal	1-2 weeks

2.Since the lead-time is set, what about samples?

Usually the samples are needed the same lead time. By the way, we can offer each customer 10-20PCS samples free of charge.

3.What basic information to provide when ordering a crystal?

Generally we request the customer to provide the center frequency, type of cutting angle(AT/BT), holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc, Customer can also specify other specific spec or requirement, if any, when placing orders.

4.What is the WTL main material?

Type	Vendor
Crystal Bar	South Urals,Russia- Crystal Factory, TF
Base	SMI/NTK/KYOCERA(JP)
IC	NPC- Japan
Top Cover	Hua Nu Dike/Yoshikawa Corporation (JP)
Conductive Glue	Three Bond – (JP)
