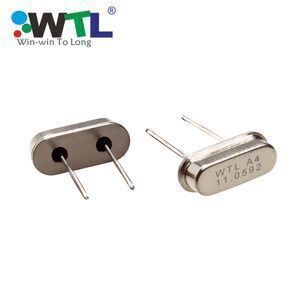

WTL WX6 2-DIP 13.5MHz Crystal Oscillator HC-49S 20pF 30ppm

Product details
About Us:19 Years Experience;Brand Name:WTL;
Supply Ability:1000000 Piece/Pieces per Month 13.5MHz Crystal;Dimensions:11.05*4.7*3.5mm;
Place of Origin:Guangdong China;Sample:Free Samples;
Supply Voltage:-;Item:13.5MHz Crystal;
Load Capacitance:20pF;Package Type:Throught Hole;
Port:SHENZHEN;Shipment:DHL, UPS, Fedex, EMS,China Post;
Frequency Tolerance:±30ppm;Frequency Stability:±30ppm;
OEM/ODM:Welcome;Packaging Detail:OPP Bag + Carton(WTL WX6 2-DIP 13.5MHz Crystal Oscillator HC-49S 20pF 30ppm);
Warranty:Global 180 Days Return;Payment:T/T, Western Union, PayPal,Credit Card;
Certificate:ISO9001 ISO14001 ROHS SGS;Packaging:OPP Bag + Carton;
Model Number:WX6;Payment Terms:L/C,T/T,Western Union,Paypal;
Nominal Frequency:13.500MHz;Operating Temperature:-20+70℃;

WTL WX6 2-DIP 13.5MHz Crystal Oscillator HC-49S 20pF 30ppm



WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com



FEATURE

1. Standard height 3.5mm,the part is compact at about one-fourth of the HC-49/U package

2. A resistance weld completely sealed type

3. Good stability and high reliability

4. Copes with high density mounting and is the optimum for mass production



ELECTRICAL SPECIFICATIONS

Resistance Welded HC-49/S Low Profile Package

Item

Specifications

Frequency Range

13.500mhZ

Load Capacitance(CL)

20pF

Frequency Tolerance (at 25°C)

± 30ppm

Frequency Stability Over Operating
Temperature Range

± 30ppm

Operating Temperature Range

-20°C--+70°C

Storage Temperature Range

-40°C--+85 °C

Shunt Capacitance (C0)

7pF Max

Driver Level(Typical)

100µW Typical

Aging(at 25°C)

± 5ppm/year maximum



WTL WX6 2-DIP 13.5MHz Crystal Oscillator HC-49S 20pF 30ppm

Packaging & Shipping



Our Services



1.19 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Over 72 Countries and Regions, 27 Distributors

9.Custom-made Frequencies Due to we have our own Wafer Production Line

Our factory has a history of 19 years and it is located on Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!

FAQ



1.What is the general lead-time of the products?

ProductLead Time
HC49 Series1-2 weeks
SMD Crystal1-4 weeks
DIP Oscillator1-2 weeks
SMD Oscillator1-3 weeks
TCXO2-8 weeks
Watch Crystal1-2 weeks

2.Since the lead-time is set, what about samples?

Usually the samples are needed the same lead time. By the way, we can offer each customer 10-20PCS samples free of charge.



3.What basic information to provide when ordering a crystal?

Generally we request the customer to provide the center frequency, type of cutting angle(AT/BT), holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc, Customer can also specify other specific spec or requirement, if any, when placing orders.



4.What is the WTL main material?

TypeVendor
Crystal Bar

South Urals,Russia- Crystal Factory, TF

Base

SMI/NTK/KYOCERA(JP)

IC

NPC- Japan

Top Cover

Hua Nu Dike/Yoshikawa Corporation (JP)

Conductive Glue

Three Bond – (JP)



How to Contact Us?

Click Here To Get Datasheet and More Discounts!
