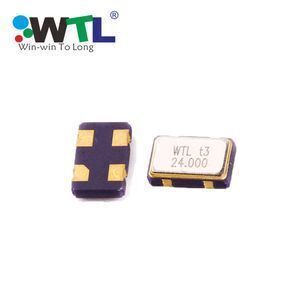

WTL 7050 Crystal OSC XO 25.0008MHz 20ppm 3.3V CMOS SMD Oscillator

Product details
OEM/ODM:Welcome;Selling Units:Single item;
Brand:WTL;Frequency Range:13.7KHz-166MHz;
Dimensions:7.0*5.0mm/4/OSC;About Us:19 Years Experience;
Single gross weight:0.001 KG;Model Number:WTL2.21451ZX;
Fan Out Type:CMOS;Operating Temperature:-20+80℃;
Load Capacitance:15pF;Place of Origin:Guangdong China;
Nominal Frequency:25.0008000MHz;Frequency Tolerance:±20ppm;
Item:25.0008 MHz Oscillator;Certificate:ISO9001, ISO14001, SGS, RoHS;
Single package size:1X1X1 cm;Warranty:Global 180 Days Return;
Supply Voltage:3.3V;Payment:T/T, Western Union, PayPal,Credit Card;
Package Type:Surface Mount,SMD;Brand Name:WTL;
Shipment:T/T, Western Union, PayPal,Credit Card;Packaging Detail:Tape and reel pakage,1000pcs/reel(WTL 7050 Crystal OSC XO 25.0008MHz 20ppm 3.3V CMOS SMD Oscillator);
Samples:Accept;Packaging:Tape & Reel;

WTL 7050 Crystal OSC XO 25.0008MHz 20ppm 3.3V CMOS SMD Oscillator

WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com



FEATURE

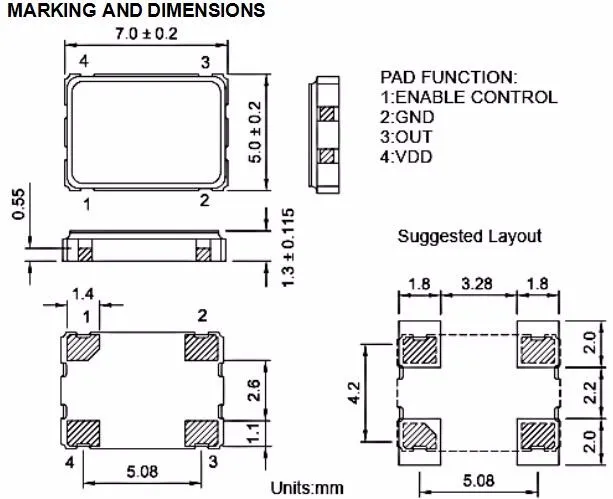

1. Typical 7.0*5.0*1.3mm ceramic SMD package

2. Output frequency up to 200MHz

3. Tri-state enable/disable

4. Typical Application:xDSL,WLAN,Fiber/10Gbit Ethernet, Notebook,PDA ,PC main board,VGA card



ELECTRICAL SPECIFICATIONS

Crystal  Oscillator(7.0*5.0mm SMD)

Item

Specifications

P/N

WTL2.21451ZX

Frequency

25.0008MHz

Fan Out Type

CMOS

Supply Voltage

3.3V

Frequency Stability

±20ppm

Operating Temperature Range

-20°C--+80°C

Storage Temperature Range

-40 °C to + 85 °C

Aging @25°C 1st year (Max)

± 3ppm/year



Remark:WTL support OEM design, welcome to contact us for other specifications.



WTL 7050 Crystal OSC XO 25.0008MHz 20ppm 3.3V CMOS SMD Oscillator

Packaging & Shipping



Our Services



1.19 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Over 72 Countries and Regions, 27 Distributors

9.Custom-made Frequencies Due to we have our own Wafer Production Line



Our factory has a history of 19 years and it is located on Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!

FAQ



1.What is the general lead-time of the products?

ProductLead Time
HC49 Series1-2 weeks
SMD Crystal1-4 weeks
DIP Oscillator1-2 weeks
SMD Oscillator1-3 weeks
TCXO2-8 weeks
Watch Crystal1-2 weeks

2.Since the lead-time is set, what about samples?

Usually the samples are needed the same lead time. By the way, we can offer each customer 10-20PCS samples free of charge.



3.What basic information to provide when ordering a crystal?

Generally we request the customer to provide the center frequency, type of cutting angle(AT/BT), holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc, Customer can also specify other specific spec or requirement, if any, when placing orders.



4.What is the WTL main material?

TypeVendor
Crystal Bar

South Urals,Russia- Crystal Factory, TF

Base

SMI/NTK/KYOCERA(JP)

IC

NPC- Japan

Top Cover

Hua Nu Dike/Yoshikawa Corporation (JP)

Conductive Glue

Three Bond – (JP)
