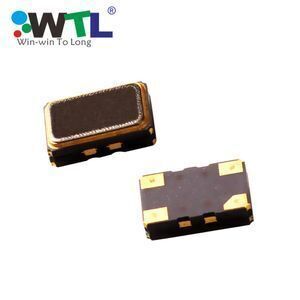

WTL High Precision Xtal Oscillator 3225 3.3V 1ppm SNWV SMD TCXO 25.78718MHz

Product details
Model Number:WTL2.21009ZX;Phase Noise Typ (dBc/Hz):-;
OEM/ODM:Welcome;Package Type:SMD,Surface Mount;
Supply Ability:100000 Piece/Pieces per Month TCXO 25.78718MHz;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Frequency Tolerance:±1ppm;Base Resonator:-;
Brand Name:WTL;Voltage - Supply:3.3v;
Current - Supply (Max):-;Samples:Accept;
Cross Reference:ASTX-11,7Q;Item:TCXO 25.78718MHz;
Payment:T/T, Western Union, PayPal,Credit Card;Frequency - Center:25.78718MHz;
Dimensions:3.2*2.5mm;Operating Temperature:-30℃~+85℃;
Power (dBm):-;Icc Max:-;
Port:Shenzhen;Shipment:DHL, UPS, TNT, Fedex, EMS,China Post;
Frequency:25.78718MHz;Nominal Frequency:25.78718MHz;
Warranty:Global 180 Days Return;Place of Origin:Guangdong China;
About Us:20 Years Experience;D/C:-;
Certificate:ISO9001, ISO14001, SGS, RoHS;Tuning Voltage (VDC):3.3V;
Pushing (MHz/V):-;Packaging Detail:Tape and Reel, 3000pcs/Reel(WTL High Precision Xtal Oscillator 3225 3.3V 1ppm SNWV SMD TCXO 25.78718MHz);
Frequency Range:10MHz-52MHz;Media Available:Datasheet;
Package:Tape and Reel;Frequency Stability:±1ppm;
Load Capacitance:10pF;

WTL High Precision Xtal Oscillator 3225 3.3V 1ppm SNWV SMD TCXO 25.78718MHz



WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com



FEATURE

1. Typical 3.2*2.5*0.9 mm ceramic SMD package

2. For automatic assembly

3. Compactness and light weight

4. Low power consumption

5. VCTCXO available

6. Low thickness



ELECTRICAL SPECIFICATION

3.2*2.5 mm SMD TCXO

Item

Specifications

P/N

WTL2.21009ZX

Package

3.2*2.5 /4 SMD

Frequency

25.78718.000MHz

Supply Voltage

3.3V

Frequency Tolerance (at 25°C)

± 2.0ppm

Frequency Stability Over Temperature

± 1.0ppm

Supply Voltage Stability

± 0.3ppm

Load Sensitivity

± 0.2ppm

Output

Clipped Sine Wave

Temperature Range

-30°C--+85°C

Aging(at 25°C)

± 1ppm/year maximum



Remark:WTL support OEM design, welcome to contact us for other specifications.



WTL High Precision Xtal Oscillator 3225 3.3V 1ppm SNWV SMD TCXO 25.78718MHz

Packaging & Shipping



Our Services



1.20 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Over 72 Countries and Regions, 27 Distributors

9.Custom-made Frequencies Due to we have our own Wafer Production Line

Our factory has a history of 19 years and it is located on Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!



FAQ



1.What is the general lead-time of the products?

ProductLead Time
HC49 Series1-2 weeks
SMD Crystal1-4 weeks
DIP Oscillator1-2 weeks
SMD Oscillator1-3 weeks
TCXO2-8 weeks
Watch Crystal1-2 weeks

2.Since the lead-time is set, what about samples?

Usually the samples are needed the same lead time. By the way, we can offer each customer 10-20PCS samples free of charge.



3.What basic information to provide when ordering a crystal?

Generally we request the customer to provide the center frequency, type of cutting angle(AT/BT), holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc, Customer can also specify other specific spec or requirement, if any, when placing orders.



4.What is the WTL main material?

TypeVendor
Crystal Bar

South Urals,Russia- Crystal Factory, TF

Base

SMI/NTK/KYOCERA(JP)

IC

NPC- Japan

Top Cover

Hua Nu Dike/Yoshikawa Corporation (JP)

Conductive Glue

Three Bond – (JP)
