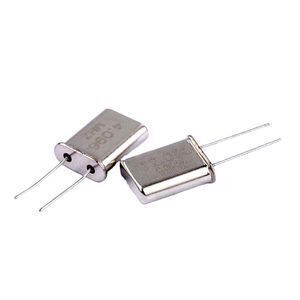

WTL 500KHz HC49U 30pF 30ppm oscillator crystals

Product details
Base Resonator:Crystal;Application level:/;
Frequency Stability:±30ppm,±10ppm~±50ppm;Pushing (MHz/V):/;
Media Available:datasheet;Brand Name:WTL;
Package Type:Throught Hole,DIP;Supplier Type:Original manufacturer;
Icc Max:/;Load Capacitance:7pF Max;
Nominal Frequency:Not Applicable;Payment:T/T, Western Union, PayPal,Credit Card;
About Us:20 Years Experience;Frequency Tolerance:± 30ppm;
Single package size:1X1X1 cm;Brand:oscillator crystals;
Place of Origin:China;OEM/ODM:Support;
Current - Supply (Max):/;Single gross weight:0.001 KG;
Sample:Accept;Selling Units:Single item;
D/C:/;Package:OPP Bag + Carton;
Packaging Detail:DIP 100pcs/bag,1000/box(WTL HC-49U 30pF 30ppm Quartz Crystal Oscillator 500KHz);Cetificate:ISO9001, ISO14001, SGS, RoHS;
Frequency:500KHz;Cross Reference:ACT HC49U Standard,9U;
Power (dBm):/;Shipment:DHL, UPS, TNT, Fedex, EMS,China Post;
Dimensions:hc-49/u;Voltage - Supply:/;
Tuning Voltage (VDC):/;Phase Noise Typ (dBc/Hz):/;
Warranty:Global 180 Days Return;Model Number:WX5;
Frequency Range:1.8432MHz to 150.000MHz;Operating Temperature:-20°C--+70°C;
Frequency - Center:/;





WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com



FEATURE

1. Height 13.46mm

2. A resistance weld completely sealed type

3. The tight frequency stability is good, the reliability is high.

4. Copes with high density mounting and is the optimum for mass production



ELECTRICAL SPECIFICATIONS



Resistance Welded HC-49/U Package

Item

Specifications

Frequency

500.000KHz

Load Capacitance(CL)

30pF

Frequency Tolerance (at 25°C)

± 30ppm

Frequency Stability Over Operating
Temperature Range

± 30ppm

Operating Temperature Range

-20°C--+70°C

Storage Temperature Range

-40°C--+85 °C

Shunt Capacitance (C0)

7pF Max

Driver Level(Typical)

100µW Typical

Aging(at 25°C)

± 5ppm/year maximum
