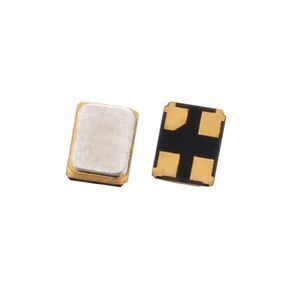

WTL Xtal Quartz 32MHz 9pF Crystal 32 MHz SMD 2016

Product details
Cross Reference:JXS21,FA2016AN,XRCGB;Application level:Industrial;
Frequency:32.000MHz;Package Type:Surface Mount,SMD;
Current - Supply (Max):/;Package Preview:;
Phase Noise Typ (dBc/Hz):/;Load Capacitance:9pF;
Frequency Tolerance:±10ppm;Nominal Frequency:32.000MHz;
Payment Terms:L/C,T/T,Western Union,PAYPAL/Master Card/Visa Card/Secure payment;Sample:Accept;
Packaging:Tape & Reel;Shipment:DHL, UPS, TNT, Fedex, EMS,China Post;
Operating Temperature:-20+70℃;Frequency - Center:32.000MHz;
Brand Name:WTL;D/C:/;
Brand:crystal;Packaging Detail:tape & reel,3000pcs/Reel(WTL Xtal Quartz 32MHz 9pF Crystal 32 MHz SMD 2016);
Port:Shenzhen;Base Resonator:/;
Dimensions:2.0*1.6mm;Frequency Stability:±10ppm,±10ppm;
Power (dBm):/;Model Number:WTL2.04644ZX;
About Us:20 Years Experience;Icc Max:/;
OEM/ODM:Welcome;Frequency Range:20MHz-96MHz;
Supply Ability:1000000 Piece/Pieces per Month Crystal 32 MHz SMD 2016;Payment:T/T, Western Union, PayPal,Credit Card;
Place of Origin:Guangdong China;Pushing (MHz/V):/;
Tuning Voltage (VDC):/;Voltage - Supply:/;
Certificate:ISO9001, ISO14001, RoHS;Warranty:Global 180 Days Return;

WTL Xtal Quartz 32MHz 9pF Crystal 32 MHz SMD 2016





SEAM SEALED CERAMIC 2.0 X 1.6mm SMD

ELECTRICAL SPECIFICATIONS

Product Attributes

P/N

WTL2.04644ZX

Series TX1
Size / Dimension 2.0x1.6 mm

Frequency

32.000MHz

Load Capacitance(CL)

9pF

Frequency Tolerance (at 25°C)

± 10ppm

Frequency Stability Over Operating
Temperature Characteristics

± 10ppm

Operating Temperature Range

-20°C--+70°C

Operating Mode

Fundamental

Package / Case

4-SMD, No Lead

Packaging

Tape & Reel (TR)

Storage Temperature Range

-55 °C to + 125 °C

Shunt Capacitance (C0)

3.0 pF Max

Driver Level

10µW~100µW

Equivalent Series Resistance ESR

 80Ω Max

Aging @25°C 1st year (Max)

± 3ppm/year

Shock Resistance

Drop test of 3 times on 2mm stainless plate from 75cm height

WTL Xtal Quartz 32MHz 9pF Crystal 32 MHz SMD 2016

Company Profile



Process Flow chart



Packaging&Shipping



Certificate



1.20 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Over 84 Countries and Regions, 29 Distributors

9.Custom-made Frequencies Due to we have our own Wafer Production Line

Our factory has a history of 19 years and it is located on Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!
