Ceramic Liners for Mud Pumps

Supplier: Dongying Lake Petroleum Technology Co., Ltd.
Region: Shandong, China
Contact: Mr Bing Xin
Price: $180.00 / >=3 sets
Min. Order: 3 sets

Click here to contact

Product details

Warranty of core components:	1 Year;	Mud Pump models:	F series, NB series, P series, T series, all models;
Video outgoing-inspection:	Provided;	After-sales Service Provided:	Online support;
Marketing Type:	Hot Product 2020;	Supply Ability:	50000 Set/Sets per Month;
Machinery Test Report:	Provided;	size:	4" - 7-1/2";
Core Components:	Pump;	Packaging Detail:	standard export package wooden box as your required;
Port:	All main ports;	material:	ceramic, Bi-metal;
Payment Terms:	L/C,Western Union,T/T;	Applicable Industries:	Energy & Mining;
Showroom Location:	None;	Local Service Location:	None;
Condition:	New;	Warranty:	1 Year;
Type:	New;	Brand Name:	Lake;
Model Number:	F, BN, P, UNBT;

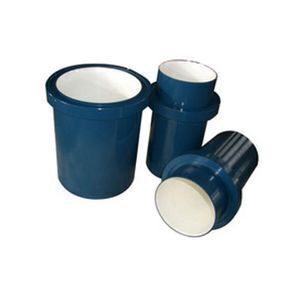

API Mud Pump Ceramic Liner and Bi-metal Liner

Product Description

API 7 EMSCO FB 1300/1600 MUD PUMP Zirconia liner

we could supply all spec premium liners and ceramic liners,API 7 EMSCO FB 1300/1600 MUD PUMP Zirconia liner used in various brands of mud pumps,produced under API 7.

1)Our API 7 mud pump liner for emsco are made of a forged steel outer shell and a high chromium iron inner sleeve. The out shell is centrifugally forged with high quality carbon steel, with Tensile Strength exceed 610Mpa, Yield Strength exceed 450 Mpa, Elongation exceed 17%, Hardness HB -180-200; The inner sleeve is centrifugally forged with high chrome iron alloy, with Hardness over HRC62 after heat treatment. Each API 7 mud pump liner for emsco is machined to close tolerances to assure ease of installation and long liner life with the inside diameter of these premium liners honed to a mirror-like finish for smooth even wear during the life of the liner. It could serve more than 800 hours.

2)Our API 7 EMSCO FB 1300/1600 MUD PUMP Zirconia liner are made of a forged steel outer shell and a ceramic inner sleeve. We can supply Zirconia(ZrO₃) sleeves as well as Alumina(Al₂O3) sleeves. The ceramic liners are mainly used for well drilling and geological explorations especially widely used in harsh oil mining environment, offshore well&gas exploration etc. It serves a 5 to 10 times longer life than metal products, and will cut down the mining cost of more than 50%.

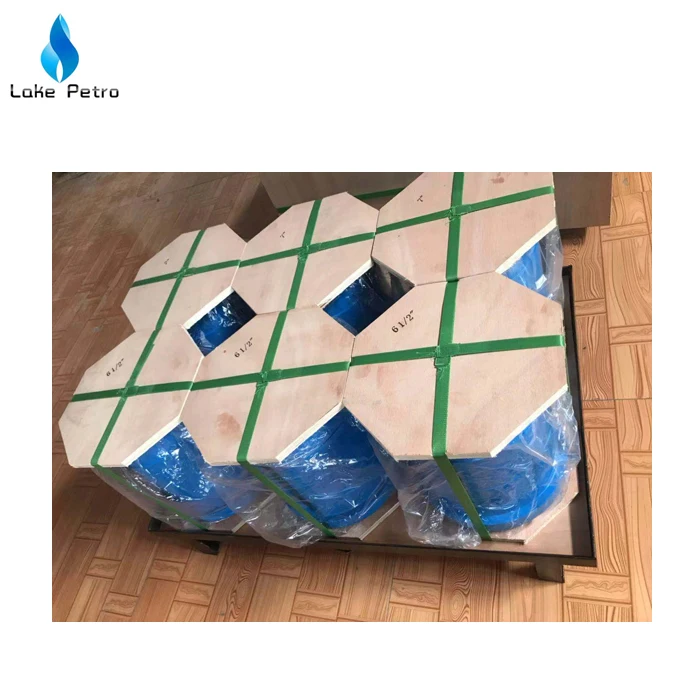

We could offer the normal export package, and also will customize the package according to customer’s requirement so as to meet customer ideal need.

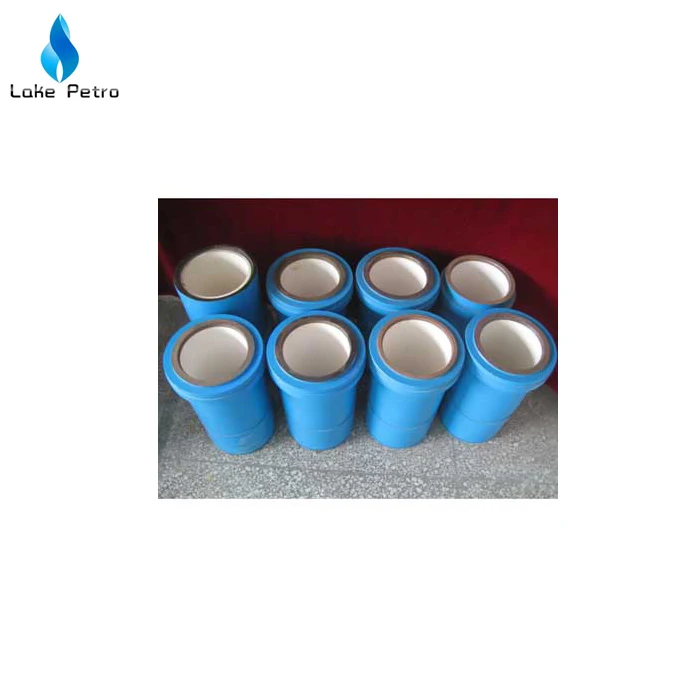

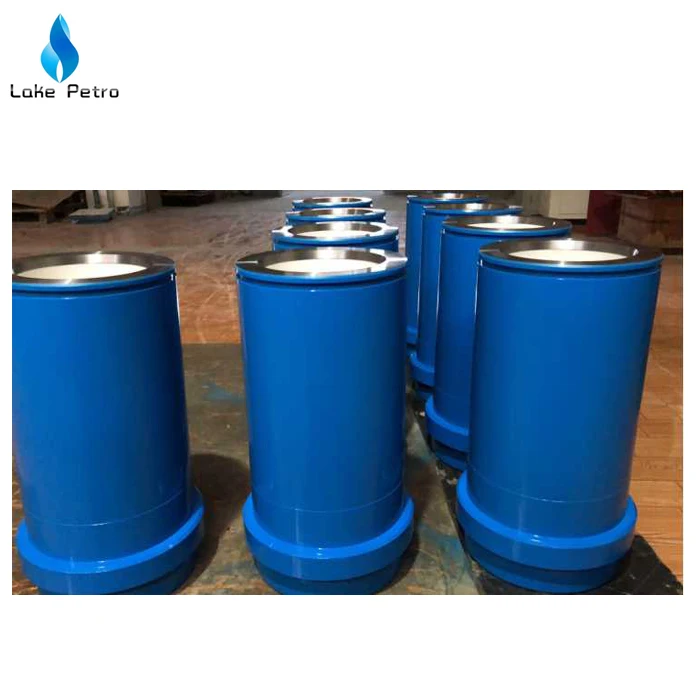

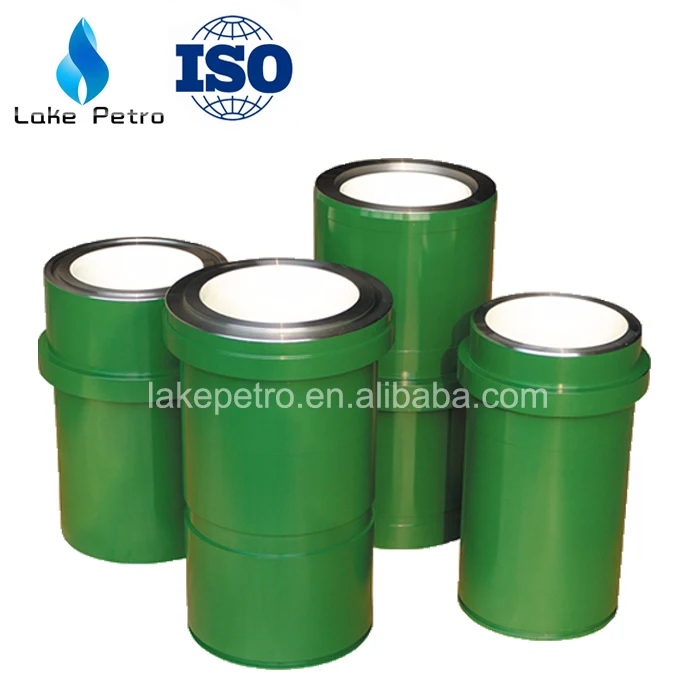

Detailed Images
