Large Automatic Film Coater with Vacuum Chuck and Adjustable Doctor Blade

Product details
Packaging Material:Wood;Automatic Grade:Semi-Automatic;
Supply Ability:10000 Set/Sets per Month;Traverse Speed Accuracy:10mm/sec;
Warranty:2 Years;Application:Lithium ion battery;
Driven Type:Electric;Place of Origin:Fujian China (Mainland);
Platform:Aluminum alloy flat vacuum chuck;Condition:New;
After-sales Service Provided:Online support,Video technical support;Voltage:110VAC or 220VAC;
Warranty:One Year limited warranty with lifetime support;Type:Coating Machine;
Packaging Detail:1 Standard exported package: Internal anticollision protection, external export wooden box packaging. 2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way. 3 Responsible for the damage during the shipping process, will change the damage part for you for free.;Packaging Type:Standard exported package;
Port:Xiamen Port;Vacuum Chuck Dimensions:Optional;
Certification:CE Certificate;Color:Requirement;
Usage:Battery Equipments;Accessories: Film Applicator:Optional 50 upto 250 mm width micrometer adjustable film applicator;
Vacuum Pump:Vacuum pump is included;Traverse Speed:0 - 150 mm/sec variable, Accuracy: 10mm/sec;
Dimension(L*W*H):550mm x 330mm x 320mm;Stroke Length:Optional;
Weight:45-80kg;Payment Terms:L/C,D/A,D/P,T/T,Western Union;
Brand Name:TMAX;

Product Description

   Large Automatic Film Coater with Vacuum Chuck and Adjustable Doctor Blade

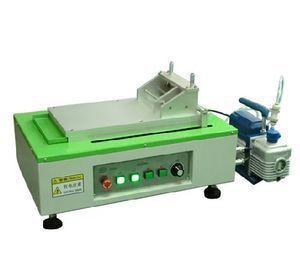

TMAX-TM is a CE Certified Large Automatic Film Coater with vacuum chuck designed to produce films with consistent thickness by using micrometer adjustable applicators or fixed thickness applicators. It has a unique driving system to produce the smooth coating on all types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place, which is particularly useful when coating on the thin substrate and making uniform tape casting. One micrometer adjustable applicator is included for immediate use. This machine can be used for research on ceramic tape casting and Li-Ion battery electrode coating.



Specifications

ModelTM300-100TM300-150TM300-200TM600-300TM500-310TM550-250TM800-250
Stroke Length10 - 300 mm adjustable by using Adjustable Position Switch10 - 300 mm adjustable by using Adjustable Position Switch10 - 300 mm adjustable by using Adjustable Position Switch10 - 600 mm adjustable by using Adjustable Position Switch10 - 500 mm adjustable by using Adjustable Position Switch10 - 550 mm adjustable by using Adjustable Position Switch10 - 800 mm adjustable by using Adjustable Position Switch
PlatformAluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 410mm(L) x 100mm(W)
Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 410mm(L) x 150mm(W)
Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 410mm(L) x 200mm(W)
Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 700mm(L) x 300mm(W)
Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 600mm(L) x 310mm(W)
Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 650mm(L) x 250mm(W)
Aluminum alloy flat vacuum chuck
Vacuum Chuck Dimensions: 900mm(L) x 250mm(W)
Accessories: Film ApplicatorOptional 50 upto 250 mm width micrometer adjustable film applicator is included, with adjustable thickness from 0.01 mm - 5 mm
Traverse Pusher is included for pushing the doctor blade to ensure constant speed coating
Note: Thinnest film can be achieved is > 10 micron
Optional Heating Cover Voltage and Power110VAC or 220VAC
Traverse Speed0 - 150 mm/sec variable
Accuracy: 10mm/sec
Vacuum PumpVacuum pump is included
ComplianceCE Certificate
WarrantyOne Year limited warranty with lifetime support



Detailed Images







Packing & Delivery



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
