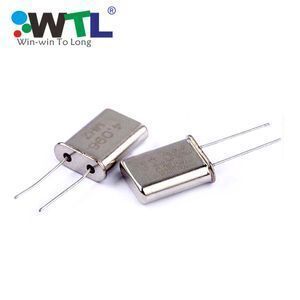

HC-49/U 20pF 10ppm DIP Crystal 44.645MHz

Product details
Brand Name:WTL;Frequency Tolerance:±10ppm;
Item:Crystal 44.645MHz;Place of Origin:Guangdong China (Mainland);
Port:Shenzhen;Dimensions:HC-49/U;
Operating Temperature:-20+70℃;Load Capacitance:20pF;
Supply Ability:100000 Piece/Pieces per Month Crystal 44.645MHz;Shipment:DHL, UPS, Fedex, EMS,China Post;
OEM/ODM:Welcome;Cetificate:ISO9001, ISO14001, SGS, RoHS;
Frequency Stability:±10ppm;About Us:19 Years Experience;
Payment:T/T, Western Union, PayPal,Credit Card;Nominal Frequency:44.645MHz;
Model Number:WTL2.04932ZX;Warranty:Global 180 Days Return;
Sample:Accept;Package:OPP Bag + Carton;
Payment Terms:L/C,T/T,Western Union,Paypal;Supply Voltage:-;
Packaging Detail:DIP 100pcs/bag,1000/box(HC-49/U 20pF 10ppm DIP Crystal 44.645MHz);Package Type:Throught Hole;

HC-49/U 20pF 10ppm DIP Crystal 44.645MHz

WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com



FEATURE

1. Height 13.46mm

2. A resistance weld completely sealed type

3. The tight frequency stability is good, the reliability is high.

4. Copes with high density mounting and is the optimum for mass production



ELECTRICAL SPECIFICATIONS

Resistance Welded HC-49/U Package

Item

Specifications

P/N

WTL2.04932ZX

Frequency

44.645MHz

Load Capacitance(CL)

20pF

Frequency Tolerance (at 25°C)

± 10ppm

Frequency Stability Over Operating
Temperature Range

± 10ppm

Operating Temperature Range

-20°C--+70°C

Storage Temperature Range

-40°C--+85 °C

Shunt Capacitance (C0)

7pF Max

Driver Level(Typical)

100µW Typical

Aging(at 25°C)

± 5ppm/year maximum



Remark: WTL support OEM design, welcome to contact us for other specifications.



HC-49/U 20pF 10ppm DIP Crystal 44.645MHz

Packaging & Shipping



Our Services



1.19 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Over 72 Countries and Regions, 27 Distributors

9.Custom-made Frequencies Due to we have our own Wafer Production Line

Our factory has a history of 19 years and it is located on Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!

FAQ



1.What is the general lead-time of the products?

ProductLead Time
HC49 Series1-2 weeks
SMD Crystal1-4 weeks
DIP Oscillator1-2 weeks
SMD Oscillator1-3 weeks
TCXO2-8 weeks
Watch Crystal1-2 weeks

2.Since the lead-time is set, what about samples?

Usually the samples are needed the same lead time. By the way, we can offer each customer 10-20PCS samples free of charge.



3.What basic information to provide when ordering a crystal?

Generally we request the customer to provide the center frequency, type of cutting angle(AT/BT), holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc, Customer can also specify other specific spec or requirement, if any, when placing orders.



4.What is the WTL main material?

+
TypeVendor
Crystal Bar

South Urals,Russia- Crystal Factory, TF

Base

SMI/NTK/KYOCERA(JP)

IC

NPC- Japan

Top Cover

Hua Nu Dike/Yoshikawa Corporation (JP)

Conductive Glue

Three Bond – (JP)



How to Contact Us?

Click Here To Get Datasheet and More Discounts!

HC-49/U 20pF 10ppm DIP Crystal 44.645MHz
