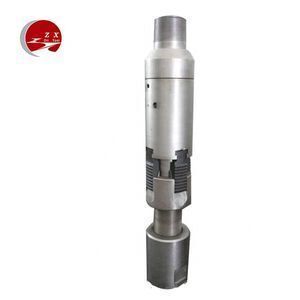

oil well downhole tools sucker rod pump tubing anchor with 4140 material

Supplier: Dongying Zhaoxin Industry And Trade Co., Ltd.
Region: Shandong, China
Contact: Mr Frank Xiang
Price: $800.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Type:	Tubing Anchor;	Size:	114,152,198;
Package Type:	international standard wooden case or as per client's requirement;	Length:	580-970;
Selling Units:	Single item;	Material:	4140;
Suitable Casing:	5-1/2,,7,9-5/8;	Applicable Industries:	Energy & Mining;
Working Pressure:	6Mpa;	Standard:	API;
Single gross weight:	35 KG;	Single package size:	78X20X20 cm;
Working Tempreture:	180 degrees Celsius;	Connection Threads1:	2-7/8EU;
Type:	hydraulice;	Model Number:	5-1/2;

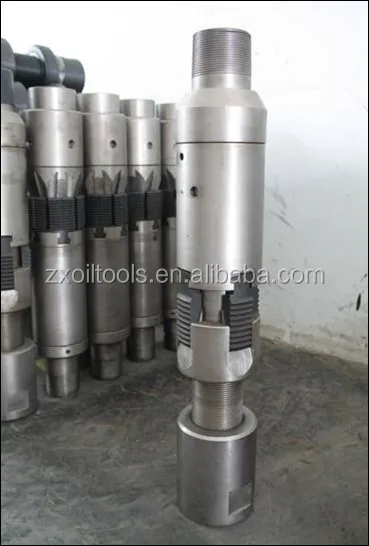

Product Description

Our tubing anchor anchor the tubing string in a rod pumping well .The tubing anchor effectively reduce rod, tubing, and casing wear. This cuts operating costs. Elimination of breathing and buckling of the tubing string also increases production by lengthening the effective stroke of the pump, which increases volumetric efficiency. Based on proven technology, the Anchor uses hydraulically activated hold-down slips to provide an anchoring point for the tieback or workstring during stimulation operations. These tubing anchors are the most economical and effective insurance you can buy against premature repairs and downtime.

Working principle

1.The Hydraulic Tubing Anchor is operated by applying pressure to the tubing.

2.This pressure shears screws that hold the anchor unset.

3.A tubing plug must be run below the anchor so pressure can be applied to the tubing.

4.The initial setting pressure is controlled by shear screws in the setting piston.

5. A straight pull shears the releasing shear screws and the anchor can be retrieved.

6.The anchor must be re-dressed before itcan be reset.

Model	Length (mm)	Max OD (mm)	Min ID (mm)	Pressure(MPa)	Max OD when teeth open	Setting Pressure (MPa)	Connecting Thread	Casing ID to be used
51/2"	580	115	62	25	128	8-12	2-7/8 TBG	121-124
7"	660	150	76	25	168	8-12	3 1/2 TBG	155-166
9 5/8"	970	208	76	25	245	8-12	3 1/2 TBG	218-240
9 5/8"	970	208	98	25	245	8-12	4 1/2 TBG	218-240

Our Services

A: Your inquiry related to our products or prices will be replied in 24 hours.
B: Protection of your sales area, ideas of design and all your private information.
C: Best quality and competitive price.

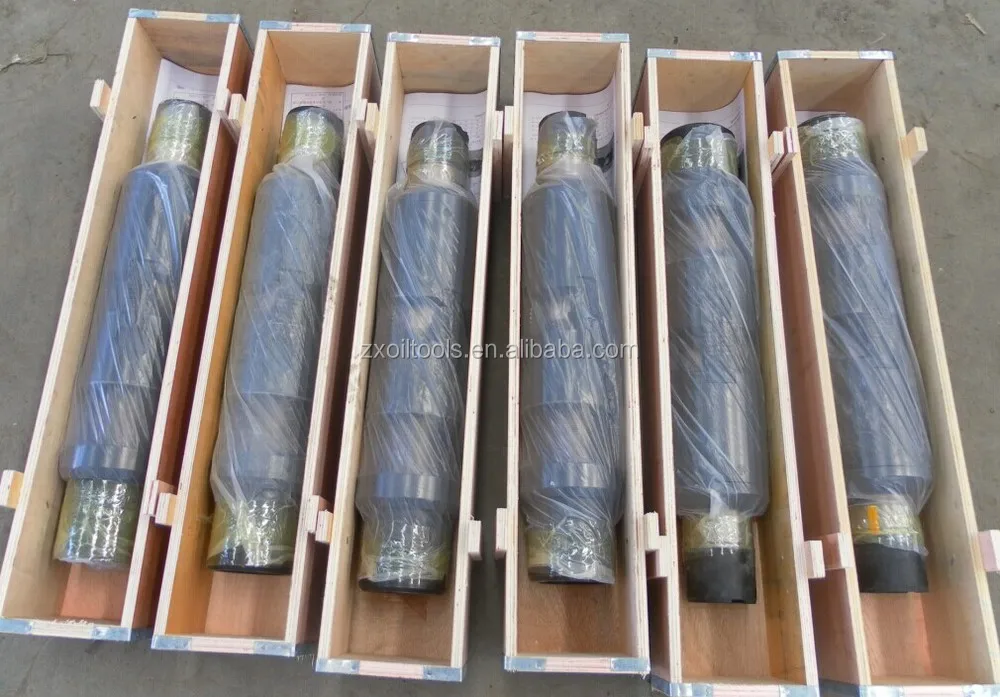

Packaging & Shipping

Company Information

Dongying Zhaoxin Industry and Trade Co.,Ltd is an ISO-9001, ISO-14001, OHSAS-18001 certified company and has all the quality systems in place for design, planning,manufacturing and quality monitoring & traceability to ensure that Dongying Zhaoxin Industry and Trade Co.,Ltd products match the highest quality & reliability Standards similar to any International major in this field.

Dongying Zhaoxin Industry and Trade Co.,Ltd with perfect attitude, product and service, is going to make further development together with customers at home and abroad .
