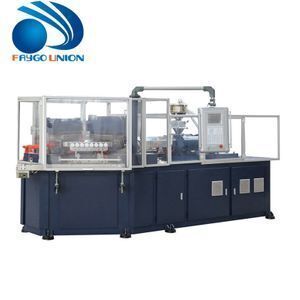

Fully automatic pet plastic bucket bottle stretch injection blow moulding machine

Supplier: Jiangsu Faygo Union Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Hussain Figo
Price: $49500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	30 Set/Sets per Year PET preform injection blow molding machine;	Type:	Injection Blow Molding;
color:	gray;	After-sales Service Provided:	Engineers available to service machinery overseas;
Warranty:	1 Year;	Plastic Type:	Thermoplastic;
Injection Rate:	300g/s ~ 1200g/s;	Power(W):	11kw;
Injection Weight:	101g-6280g;	Payment Terms:	L/C,T/T,Western Union;
Packaging Detail:	wood case and plastic film packing;	Clamping Force:	600KN-16000KN;
Name:	Vertical Injection Molding Machine;	Certification:	CE;GC;IAF;ISO9001:2000;
Style:	Vertical;	Automatic:	Yes;
Machine dimension:	31.31.7;	Opening Stroke:	280-1500 Mm;
Condition:	New;	Voltage:	380V/ 50Hz;
Brand Name:	Faygo;	Port:	shanghai for machine to make bottle plastic;
Delivery Detail:	Shipped in 90 days after payment;	Place of Origin:	Jiangsu China;
Injection Weight:	101g-6280g;	Machine weight:	3.5T;

Fully automatic pet plastic bucket bottle stretch injection blow moulding machine

Product Description

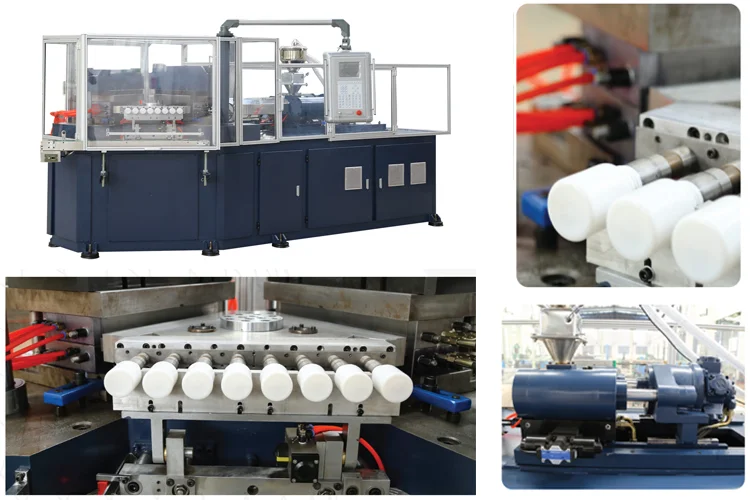

Injection blow molding machine introduction

The machine is a full automatic injection molding equipment, suitable for processing PP, PS, PE, SAN, PMMA, PC, PETG, PEN and other thermoplastic, widely used in pharmaceutical, health care products, food and beverage, cosmetics, etc..One Mold with Multi-caivity for automatic continuous production technology, using three horizontal station rotary device, hot runner system and multi-stage injection molding system,injection molding, blow molding, demolding three position and action to ensure equipment of high efficiency and energy saving operation, ensure smooth product bottle, the bottleneck of inner and outer diameter and thread high precision, no waste is the standard equipment of modern enterprise environment-friendly production.

Feature:
1)One step fast molding without scrap, good for continuous production meeting GMP standard;
2)Neck and thread in high precision dimension to meet various sealing requirement;
3)Smooth party lines on body and bottom for perfect surface finishing, various shape available;
4)Max. Uniformity of bottle weight, thickness and volume;
5)High speed production with multi cavities available on different bottle size;
6)Suitable material: PE, PP, PS, SAN, PETG, EVA...etc for various bottles;
7)Different method as option, big space for ease mould changing.

Technical parameters

Injection blow molding machine parameters:

Name	Unit	FG30	FG60	FG80	FG100
Screw diameter	mm	40	45	50/55	60
L/D Ratio		22:1	22:1	22:1	22:1
Injection Capacity	G	176	260	314	415
Heating section		3+N	3+N	4+N	4+N
Total power	KW	20	30	40	45
System pressure	Mpa	14	14	14	14
Compressed air pressure	Mpa	0.7-1.2	0.7-1.2	0.7-1.2	0.7-1.2
Cooling water pressure	Mpa	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Product maximum diameter	mm	120	120	120	120
Product maximum length	mm	200	220	220	220
Product volume	ml	3-800	3-800	3-1000	3-1000
Dimensions	M	31.31.7	3.51.41.8	41.62	4.51.82
Equipment weight	Ton	3.5	5	8	10

Mode cavity number control table:

Product Size				ZQ30	ZQ50	ZQ60	Z80
Volume	Neck Dia.	Height	Body Dia.	Cavities	Cavities	Cavities	Cavities
5ML	10	35	45	9	14	18	22
10ML	12	40	20	9	12	16	20
20ML	15	50	25	8	10	14	18
30ML	20	60	30	7	9	13	16
40ML	22	65	35	7	8	12	15
60ML	28	75	40	6	8	12	14
80ML	30	80	45	5	7	10	13
100ML	32	85	50	4	6--7	10	12
150ML	35	90	53	3	5--6	8	9
200ML	38	100	58	3	4--5	7	8
400ML	42	120	65	2	3--4	6	7
650ML	50	160	80	1	2	5	6
800ML	40	200	90	1	2	4	5
100ML	45	200	90		1	2	3

Applicable products

Cosmetic section	Cream bottles. Hand care bottles. lotion bottles...
Pharmacy section	Eye drop bottles, pill bottles , medicine bottles...
Food section	Beverage bottles (Milk.juice ....),baby feeding bottles... Gum bottles
Chemical section	Pesticide bottles(Special )...powder bottles ...

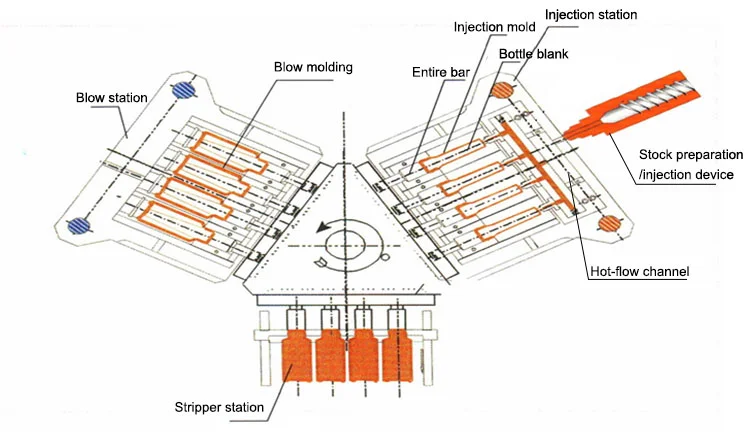

Equipment workflow

Operation principle :
First, during the operation of the machine, the raw material is withdrawn from the hopper to the extruder barrel & screw assembly, which is melted to form a polymer. The molten polymer is fed into the hot runner tube and injected into the cavity and core pin by means of a nozzle injection which forms an outer shape and is clamped around the formed inner mandrel and then the first complement, in the injection device, Forming the preform (preform), the second step in the 360 degree rotating table rotation 120 degrees, to reach the blow molding device, and then in accordance with the size of the blow mold, the embryo blown into the product, the third step, stripping The When the mold is slightly cooled, there will be baffle to retract the mold and transport it to the destination using the conveyor.
