Supply Ability: | 1000000 Piece/Pieces per Month 1575.42MHz Saw Filter; | Transfer Function: | Low Pass; |
3dB Bandwidth: | -; | Port: | Shenzhen; |
Warranty: | Global 180 Days Return; | Nominal Center Frequency: | 1575.42MHz; |
Stopband Attenuation: | 40-52dB; | Shipment: | DHL, UPS, TNT, Fedex, EMS,China Post; |
Model Number: | WTL2.02534ZX; | Brand Name: | WTL; |
OEM/ODM: | Welcome; | Item: | 1575.42MHz Saw Filter; |
Input Impedance: | 50ohm; | About Us: | 19 Years Experience; |
Factory Manufacturer: | Yes; | Dimension: | 1.4*1.1mm; |
Place of Origin: | Guangdong China; | Certificate: | ISO9001, ISO14000, SGS, RoHS; |
Packaging Detail: | tape & reel, 5K/reel(WTL 1.4*1.1mm 1411 SMD 1575.42MHz Saw Filter for GPS); | Package Type: | Surface Mount; |
Operating Temperature Range: | -40+85'C; | Type: | SAW Filter; |
Samples: | Accept; | Insertion Loss: | 1.3dB; |
Payment Terms: | L/C,T/T,Western Union,credit card paypal; |
WTL----Win-win To Long
WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.
Website: www.wtlcrystals.com
FEATURE
1. SAW filter for GPS
2. High stability and reliability with good performance and no adjustment
3. Narrow and sharp pass band characteristics
4.Low insertion loss and deep stop band attenuation for interference
5. Low – loss SAW filter for GPS

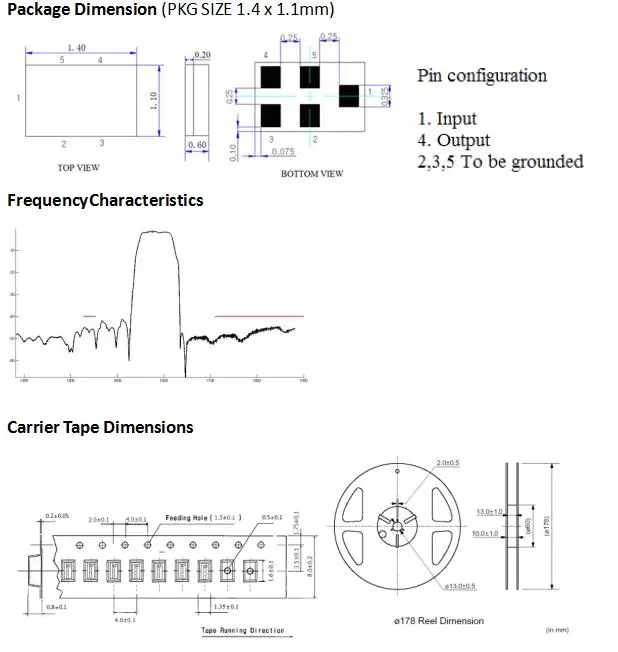

Electrical Specifications
Items | Rating | unit |
Maximum Working Voltage | 0 | Vdc |
Maximum Working Power | 10 | dBm |
Operating Temperature Range | -40 ~ +85 | ℃ |
Storage Temperature Range | -40 ~ +85 | ℃ |
Items | Test Condition | Min | Typ | Max | Unit |
Center Frequency | - | - | 1575.42 | - | MHz |
Insertion Loss | F0±1.2 MHz | - | 1.3 | 1.6 | dB |
Ripple Level | F0±1.2 MHz | - | 0.1 | 0.5 | dB |
Attenuation | D.C~1476MHz | 42 | 45 | - | dB |
| 1425~1525MHz | 46 | 50 | - | dB |
| 1625~1725MHz | 48 | 52 | - | dB |
| 1725~1850MHz | 48 | 52 | - | dB |
| 1850~2000MHz | 48 | 50 | - | dB |
| 2000~3000MHz | 38 | 40 | - | dB |
VSWR | 1574.22~1576.62MHz | - | 1.2 | 1.6 | - |
Input/Output Impedance | - | - | 50 | - | ohm |

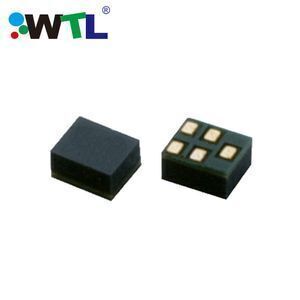

WTL 1.4*1.1mm 1411 SMD 1575.42MHz Saw Filter for GPS
