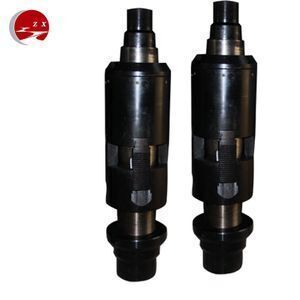

Oilfield tubing oil drainage anchor hydraulic tubing anchor

Supplier: Dongying Zhaoxin Industry And Trade Co., Ltd.
Region: Shandong, China
Contact: Mr Frank Xiang
Price: $400.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Applicable Industries:	Energy & Mining;	Type:	hydraulic tubing anchor;
Working Tempreture:	180 degrees Celsius;	Working Pressure:	6-8Mpa;
Max OD:	208mm;	Payment Terms:	L/C,T/T,Western Union;
Length:	680;	Material:	4140;
Connection Threads1:	2-7/8EU;	Packaging Detail:	international standard wooden case or as per client's requirement;
Type:	Tubing Anchor;	Supply Ability:	1000 Piece/Pieces per Month;
Port:	Qingdao/Tianjin;	Suitable Casing:	6-5/8;
Size:	135;	Standard:	API;
Model Number:	9-5/8;

Product Description

The tubing anchor is a conventional anchoring device applied to screw pump well. The product is generally used at the lower part of the screw pump, has radial force anchoring effect and prevents radial rotation and axial creep of tubing string due to stator rotation.

1. Safely and firmly set in all type of casing, including premium grades.

2. Bidirectional slip locks, which improved pressure-resistance capability from above and below.

3. Hydrostatic set, straight pull releasing, suitable for all kinds wells.

4. Bore satisfies different kinds of requestments.

Working principle

The Hydraulic Tubing Anchor utilizes special designed slips - heat-treated steel alloy double-acting slips for maximum holding power in tension orcompression.

Slips are fully enclosed for extra breakage resistance and will be retained if slips break.

The anchor isretrieved by shearing screws with tension.

Packaging & Shipping

Our Services

Model	Length (mm)	Max OD (mm)	Min ID (mm)	Max OD when teeth open	Setting Pressure (MPa)	Connecting Thread
51/2"	580	115	62	128	8-12	2-7/8 TBG
7"	660	150	76	168	8-12	3 1/2 TBG
9 5/8"	970	208	76	245	8-12	3 1/2 TBG
9 5/8"	970	208	98	245	8-12	4 1/2 TBG
